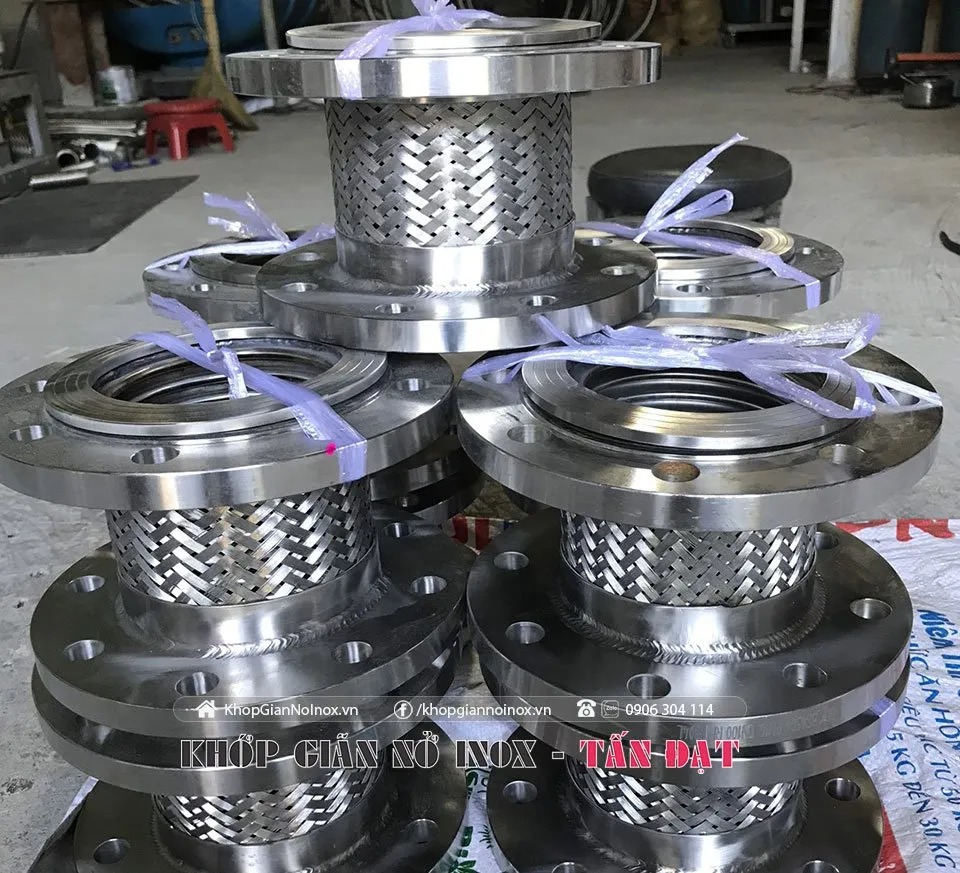

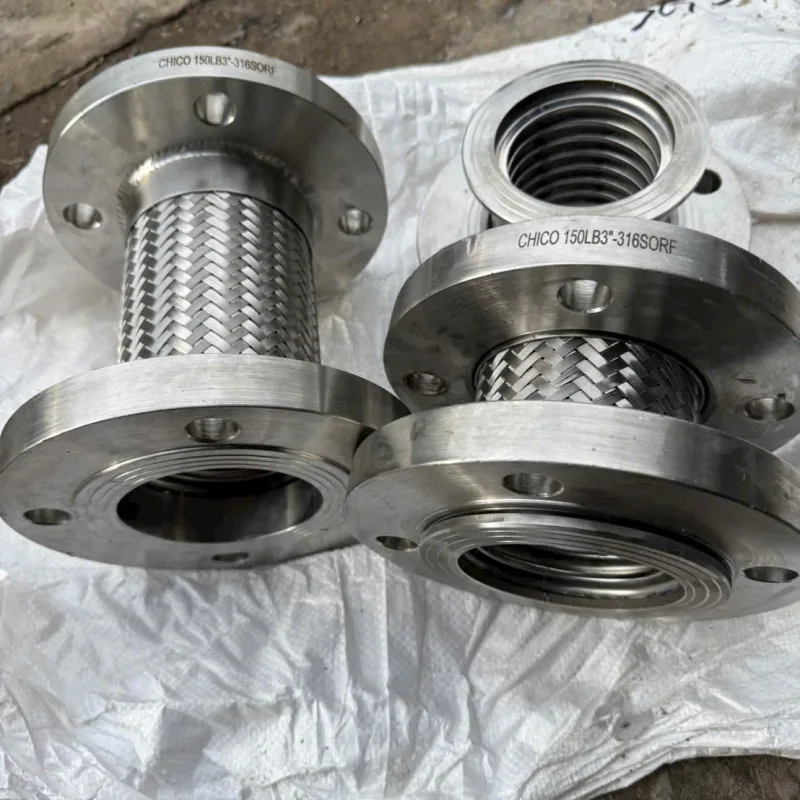

Flexible joint DN100, JIS 10K stainless flanges, fixed + floating
DN100 flanged flexible joint with one fixed end and one swivel end, manufactured by Tan Dat. This device helps with vibration damping and misalignment compensation for industrial pipelines, made of 304/316 stainless steel.
- Certified stainless steel of the correct grade
- 100% pressure tested before shipment
- Made to your size and connection type
- Factory prices – good discounts for dealers and contractors
Price: Contact us for the best price
- Fast quotation
- Direct manufacturer
- Project partnership
- Nationwide delivery
Specifications
| Product type | Khớp nối mềm mặt bích |
|---|---|
| Nominal size | DN100 |
| Length | On request |
| Material | 304 stainless steel (316 on request) |
| End connection | JIS 10K flanges, one fixed + one floating flange |
| Origin | Made in Tan Dat workshop – Ho Chi Minh City, Vietnam |
| Inspection | Pressure and visual inspection before shipment |
| Custom manufacturing | Yes – size, end connection, material |
Description
Technical specifications of Tan Dat DN100 flanged flexible joint with one swivel end
In large-scale industrial piping networks, eliminating vibration and installation tolerances is a core challenge for design engineers. The DN100 nominal size flexible joint product line, directly fabricated by Tan Dat, effectively meets this requirement thanks to its corrugated stainless steel 304 (or optional 316) hose structure, which is braided with an outer mesh. This design allows the material to withstand flexible expansion amplitudes, minimizing weld cracking caused by operating pressure or building foundation settlement.
The technical highlight of this device lies in its JIS 10K flanged configuration, which combines one fixed flange and one free-swivel flange. This structure thoroughly resolves the difficulty of aligning bolt holes between rigid pipe sections, significantly shortening on-site installation time.
Detailed technical specifications
| Feature | Technical specifications |
|---|---|
| Type | Flanged stainless steel flexible joint |
| Nominal diameter | DN100 |
| Overall length | Manufactured according to engineer's requirements/drawings |
| Core hose & braid material | Stainless steel 304 (or 316 upon request) |
| Connection type | JIS 10K flange (1 fixed end, 1 swivel end) |
| Manufacturer |
Guidelines for selecting and installing DN100 flexible joints correctly
To ensure optimal service life, engineers should note several principles during installation:
- Survey the expansion travel: Accurately determine the distance between two fixed points of the pipeline to specify the appropriate flexible hose length, avoiding excessive tension or sharp bending.
- Use the swivel flange effectively: When tightening bolts, utilize the swivel flange to align mounting holes without twisting the internal stainless steel hose body.
- Install load-bearing supports: Do not allow the weight of the entire pipe section to rest on the flexible joint; dedicated pipe hangers or supports must be arranged at both ends.
Practical applications in M&E and industrial systems
Tan Dat's DN100 flanged flexible hose products are present in many critical locations:
- Water supply pump clusters, booster pumps, and fire protection (PCCC) pump stations.
- Chilled water piping for central chiller air conditioning systems and factory boiler steam lines.
- Compressed air lines, dilute chemical lines, or lines passing through technical settlement joints between buildings.
Quality control process at Tan Dat workshop
Every product leaving our mechanical workshop in HCMC must undergo rigorous inspection steps:
- Visual inspection: Ensure welds are uniform and the braided mesh is free of scratches or loose strands.
- Pressure testing: Conduct 100% pressure testing on all products to ensure no leakage occurs before delivery to the customer.
Contact for consultation and ordering
Engineers and construction contractors requiring detailed advice on specifications, lengths, or specific material requirements for projects, please contact Tan Dat Flex directly via Hotline/Zalo: 0906 304 114 or email khopgiannoinox.vn@gmail.com to receive a quick quote from our manufacturing workshop.
Frequently asked questions about flanged flexible joints
What pressure can stainless steel flexible joints withstand?
Common single-braided stainless steel flexible joints operate at PN10 – PN16 (10 – 16 bar). For higher pressures, Tan Dat fabricates double-braided types or increases corrugated tube thickness according to design parameters.
Should I choose 304 or 316 stainless steel flexible joints?
Stainless steel 304 is suitable for most water, steam, and gas systems. Stainless steel 316 contains molybdenum for better corrosion resistance, making it recommended for chemicals, seawater, wastewater, or coastal environments.
Does Tan Dat fabricate flexible joints according to custom lengths and flange types?
Yes. As a direct manufacturer, we accept custom fabrication for any length, DN15 – DN300 (larger upon request), JIS, BS, ANSI, DIN flanges, threaded ends, unions, and clamps. Call 0906 304 114 for a quote.
Projects using this product
Product reviews
Technical assessment
Tan Dat Flex engineering team
Flexible joint DN100, JIS 10K stainless flanges, fixed + floating belongs to our flanged flexible joints range. Material: 304 stainless steel (316 on request), end connection: JIS 10K flanges, one fixed + one floating flange, size DN100. Our engineers recommend it when you need this: flanged ends are quick to install and remove for maintenance. For the longest service life, choose the right specification and follow the installation guide.
Strengths
- Flanged ends are quick to install and remove for maintenance
- Isolates vibration from pumps, compressors and chillers, reducing weld cracks and pipe noise
- Durable stainless steel that withstands heat and rust in normal service
- Made to order in the size, end connection and material your project needs
Selection & installation notes
- Confirm the flange standard (JIS, BS, ANSI, DIN) and bolt pattern to match the existing pipeline
- Install as close as possible to the vibration source; do not use the joint to correct large misalignment
- For chloride, sea water or strong chemicals consider upgrading to SS316
- When ordering, share pressure, temperature, medium and installation size for an accurate quotation
