Heat-resistant stainless steel braided hose: construction and uses

High-temperature stainless steel flexible hoses are effective technical solutions designed and manufactured from stainless steel grades such as 304, 316, 321, etc., aimed at conveying high-temperature and high-pressure fluids. At the same time, the products play an important role in absorbing mechanical movements and thermal expansion generated in industrial piping systems.

Detailed structure of high-temperature stainless steel flexible hoses

To meet harsh working conditions, high-temperature stainless steel flexible hoses are composed of three main parts closely connected to each other:

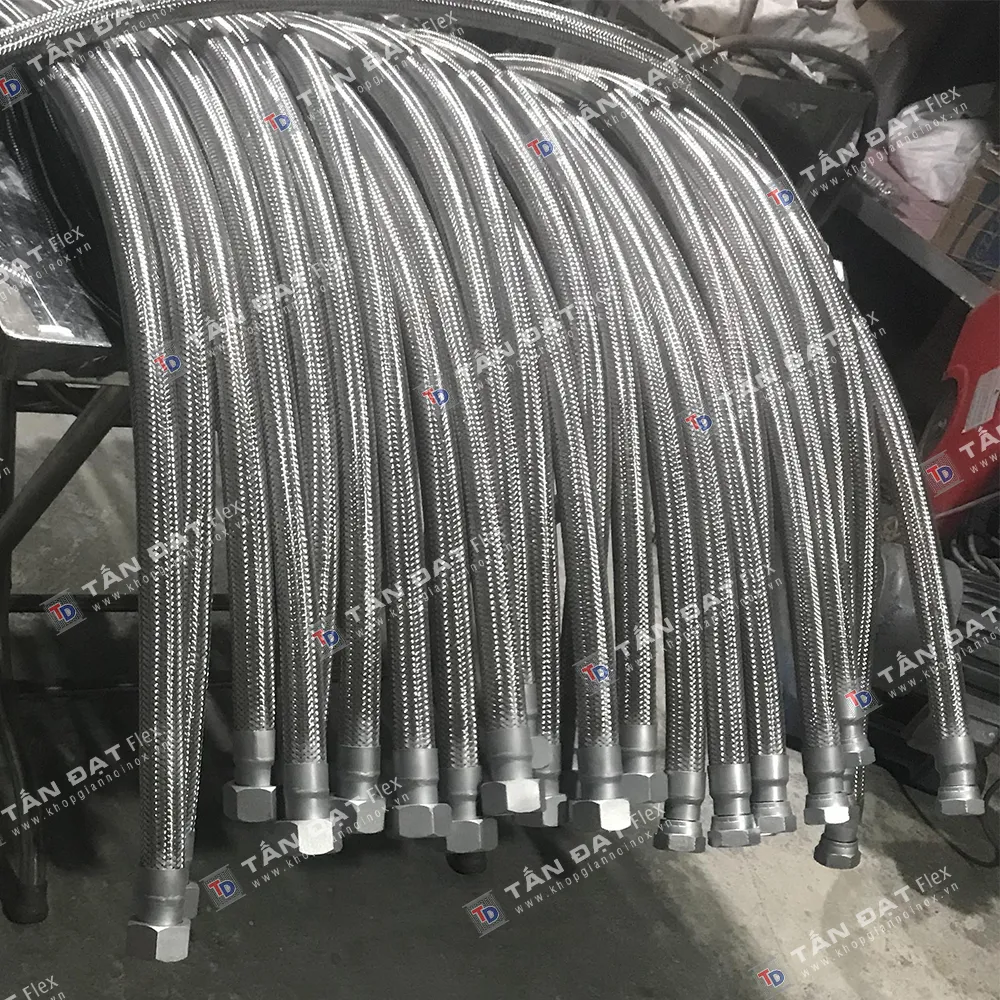

• Body part (core): Commonly known as corrugated stainless steel hose with a characteristic annular/helical profile. This design provides high temperature resistance and good elasticity for the entire pipeline.
• Braided layer: Braided from soft stainless steel wires on the outside of the core layer. The main function of this braided layer is to help the hose withstand high pressure, while protecting the inner corrugated core from mechanical impacts from the surrounding environment.
• End connections: Depending on the technical requirements of the system, end connections can be custom-made into female cone seats, straight threads, unions, flanges, or weld ends to connect directly with rigid pipes.

Outstanding features of stainless steel flexible hoses

Thanks to quality metal materials and a specialized structure, high-temperature stainless steel flexible hoses possess many superior technical advantages:

• High temperature resistance: Operates stably in high-temperature systems and does not age like conventional rubber hoses.
• Hygiene safety: Completely odorless and tasteless, suitable for many environments requiring high cleanliness.
• Good pressure resistance: The braided layer structure helps the hose withstand high working pressure without deformation.
• Chemical resistance: Resists common alkalis, acids, and many other industrial chemicals. (Note: For strongly corrosive chemicals, customers should choose specialized braided PTFE hoses).
• Flexible and safe: Easily bends according to the installation terrain, lightweight, and effectively explosion-proof.

Practical applications in industrial systems

With superior mechanical and physical properties, high-temperature stainless steel flexible hoses are widely applied in many fields:

• Conveying boiler steam, thermal oil, hot water, hot compressed air, and industrial exhaust gas.
• Installed as an intermediate connecting section between equipment with high vibration (such as pumps, air compressors) and rigid piping systems to eliminate vibrations.
• Conveying media such as gas and petroleum pipelines in factories and supply stations.

How to choose the right high-temperature stainless steel flexible hose

To ensure the system operates safely and durably, engineers and operators need to note core factors when purchasing products:

• Determine precisely the maximum working temperature of the fluid.
• Determine the operating pressure parameters of the system.
• Clearly identify the type of medium to be conveyed (water, steam, oil, chemicals...).
• Choose the compatible end connection type with existing equipment and piping.

Important technical note: The higher the working temperature, the lower the allowable pressure of the hose will be. Therefore, our technical team will calculate to select the correct material grade (such as stainless steel 304, 316, 321) along with the appropriate number of braided layers to suit your actual conditions.
