SS304 Anti-Vortex Water Plate with Filter Screen

The 304 stainless steel anti-vortex plate with strainer is an essential device for preventing vortex formation in flow streams and eliminating impurities in civil and industrial pipeline systems. Manufactured from quality stainless steel material, the product ensures mechanical durability and reliable corrosion resistance under various operating conditions.

Structural Features of the 304 Stainless Steel Anti-Vortex Plate with Strainer

The product is designed with an optimal structure to completely resolve the issue of vortex funnel formation when liquid is sucked into the discharge pipe or water collection port. Water vortex phenomena typically cause noise, vibration, and reduced pump efficiency, while generating unwanted air pockets.

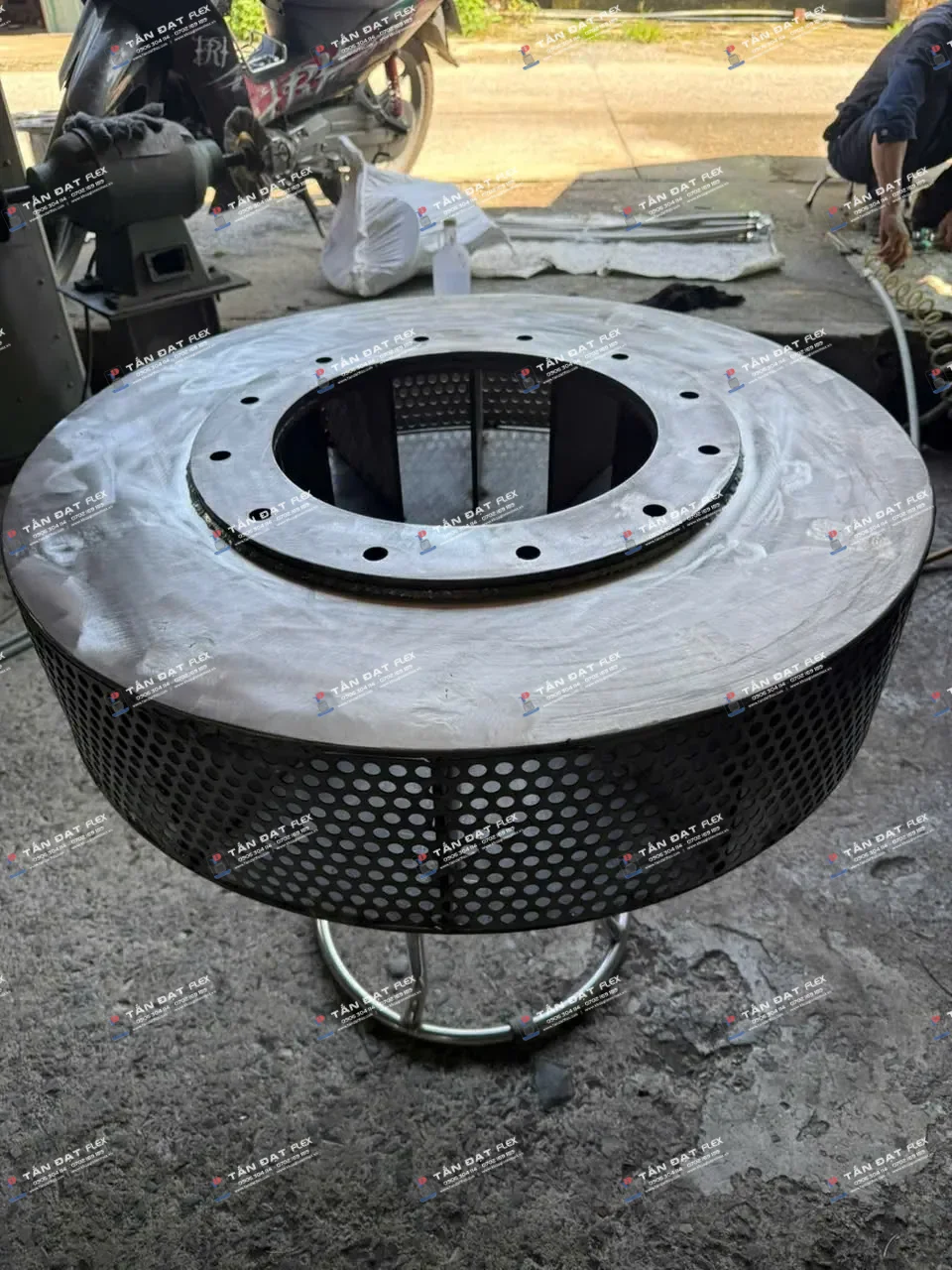

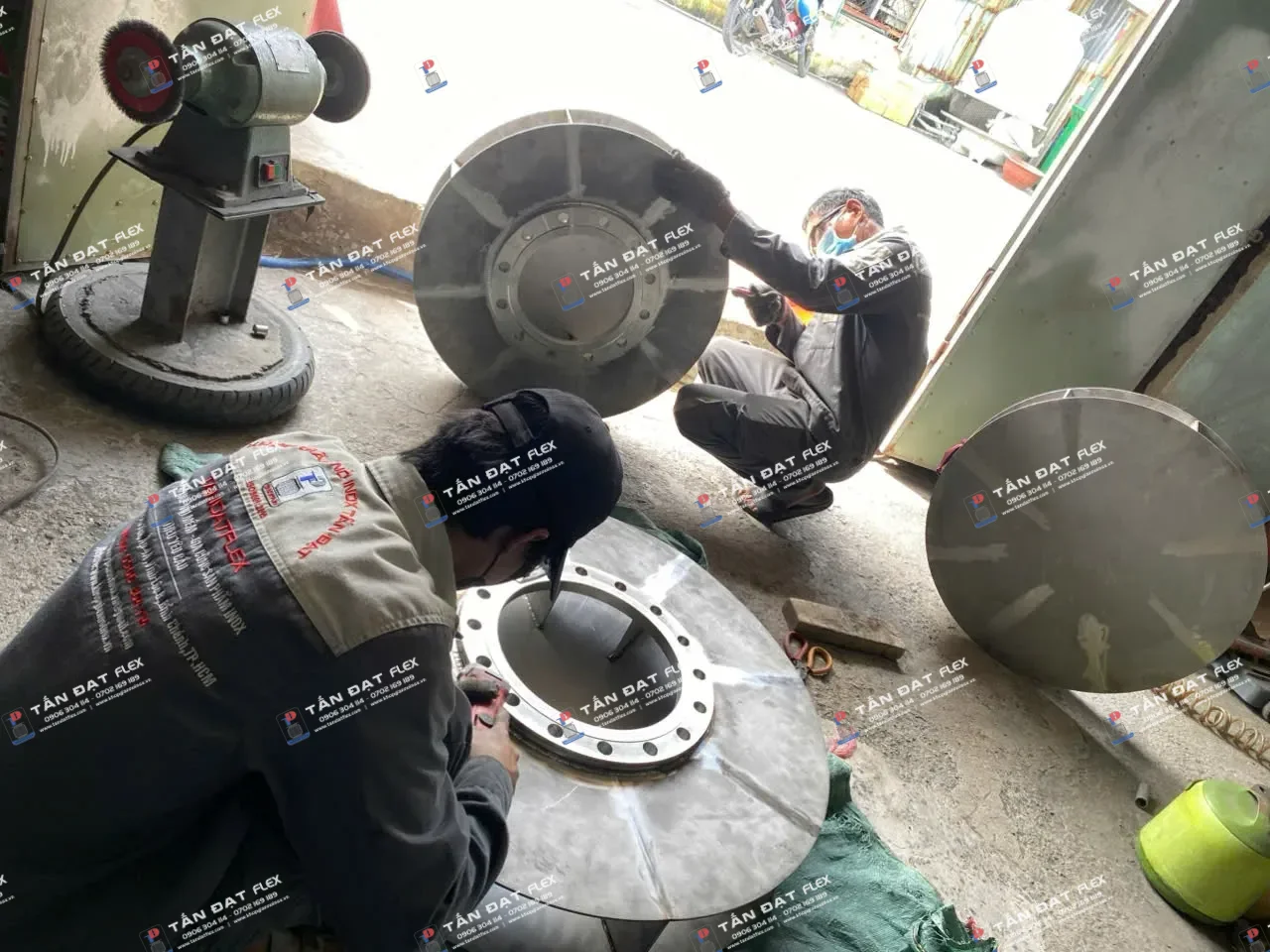

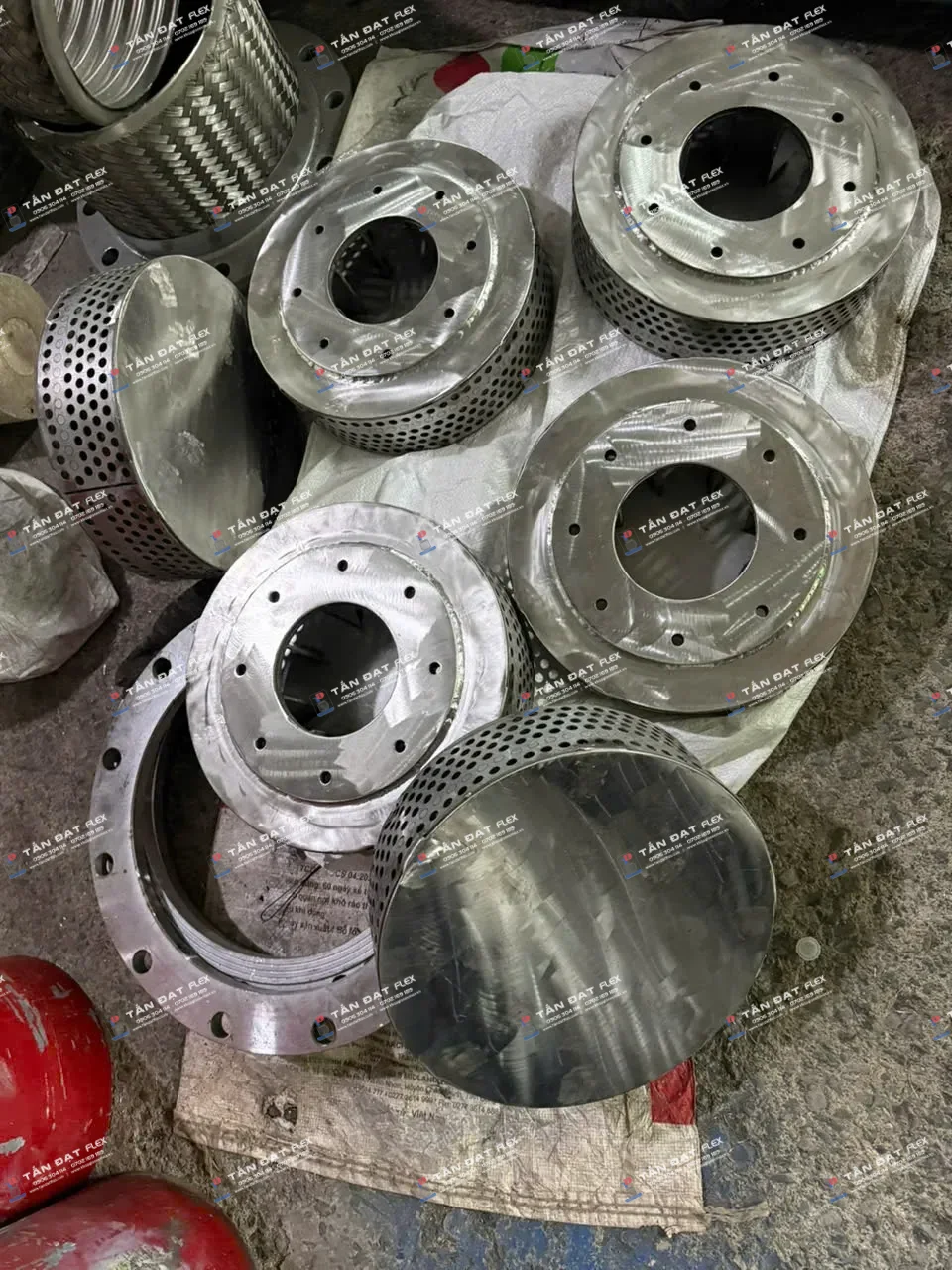

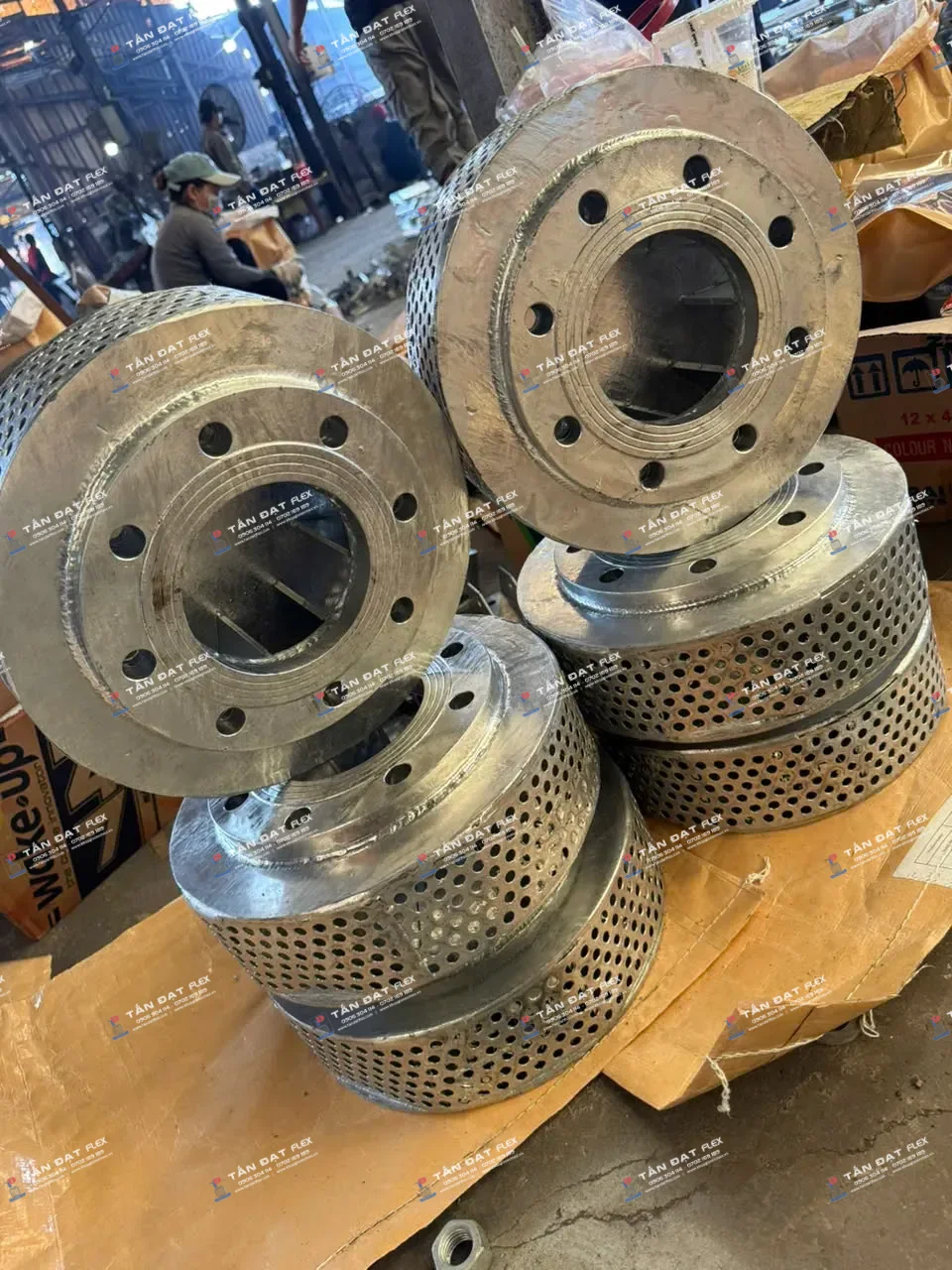

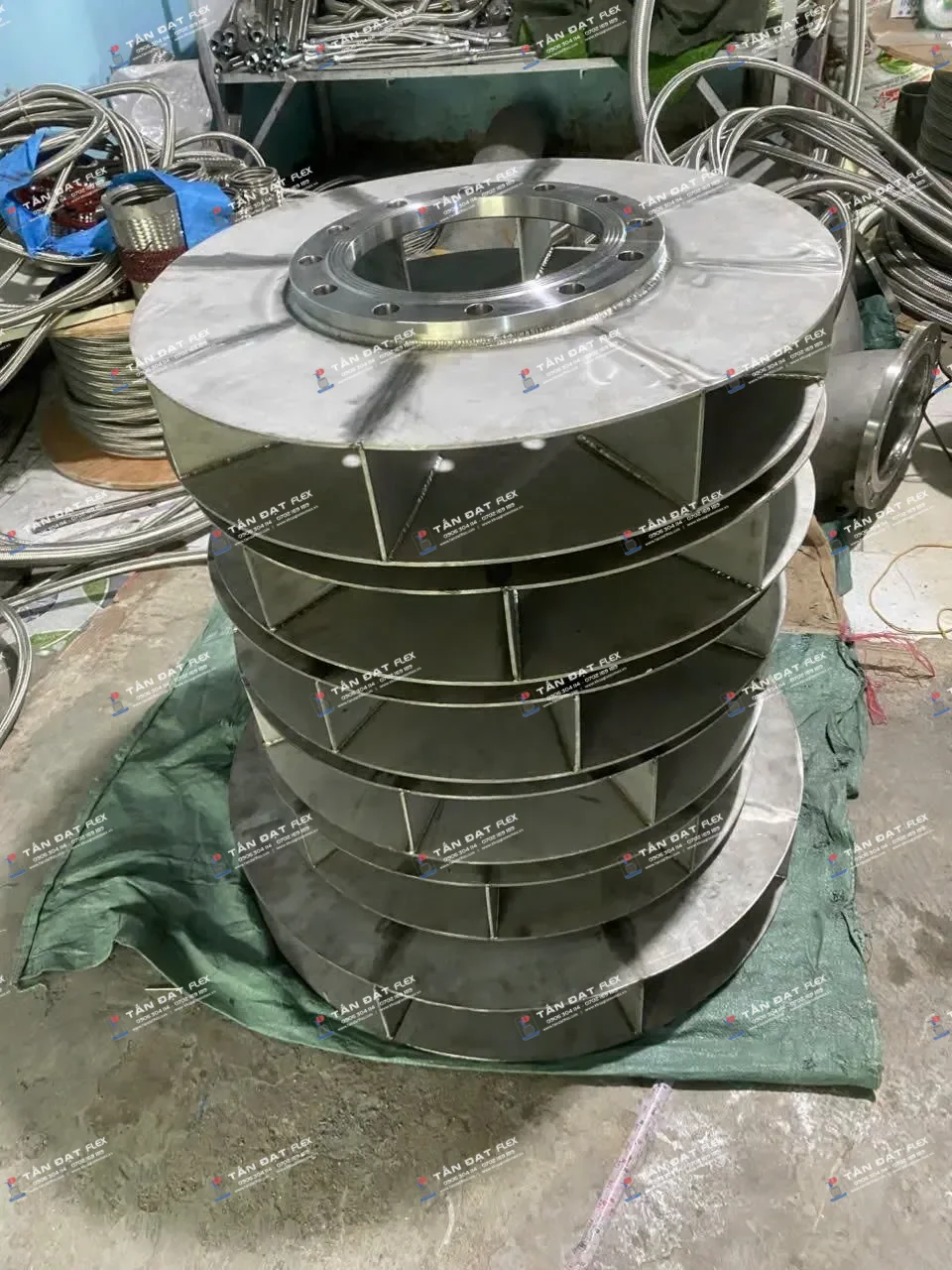

The main components of the device include a flat or conical plate made of SS304 stainless steel, which serves to break up the vortex. Accompanying this is a strainer component also made of SS304 stainless steel, which helps retain large debris and waste, preventing them from entering the pump or pipelines and causing blockages.

Technical Specifications and Standard Operating Conditions

To ensure compatibility with modern pipeline systems, the product is manufactured in compliance with fixed technical specifications. Understanding these operating limits helps technicians install the equipment properly and extends its service life.

The main manufacturing material for both the plate body and the debris strainer is SS304 stainless steel. The flanged connection type is machined according to the BS4504-PN16 standard, making the connection to the piping system secure and tight.

Regarding pressure resistance, the device meets common PN10 and PN16 working pressure levels. The maximum operating temperature limit of the product reaches 120 degrees Celsius, making it suitable for various applications conveying cold water, hot water, or non-highly corrosive fluids.

Advantages and Practical Applications

Thanks to the use of SS304 stainless steel material, the anti-vortex plate possesses resistance to almost all common acids and alkalis at low concentrations, along with oxidation resistance in humid environments. This helps the equipment maintain a bright surface and minimizes dirt buildup.

The product is widely applied in building water supply and drainage systems, wastewater treatment plants, fire protection systems (PCCC), underground water tanks, and industrial pump stations. The combination of anti-vortex and straining functions provides comprehensive protection for the downstream pump system.

Notes on Installation and Maintenance

The installation process must strictly follow the manufacturer's technical instructions. Ensure that the bolts on the flanged connection conforming to the BS4504-PN16 standard are tightened with even force to prevent fluid leakage under PN10 or PN16 pressure.

Due to the integrated strainer, operators should periodically inspect and clean the strainer to remove trapped sediment, ensuring that the flow rate remains stable and does not obstruct the system's water suction efficiency.

For any detailed consultation and product orders, please contact Tan Dat Flex directly via hotline 0906 304 114, Zalo 0906304114, or email khopgiannoinox.vn@gmail.com to receive prompt support.
