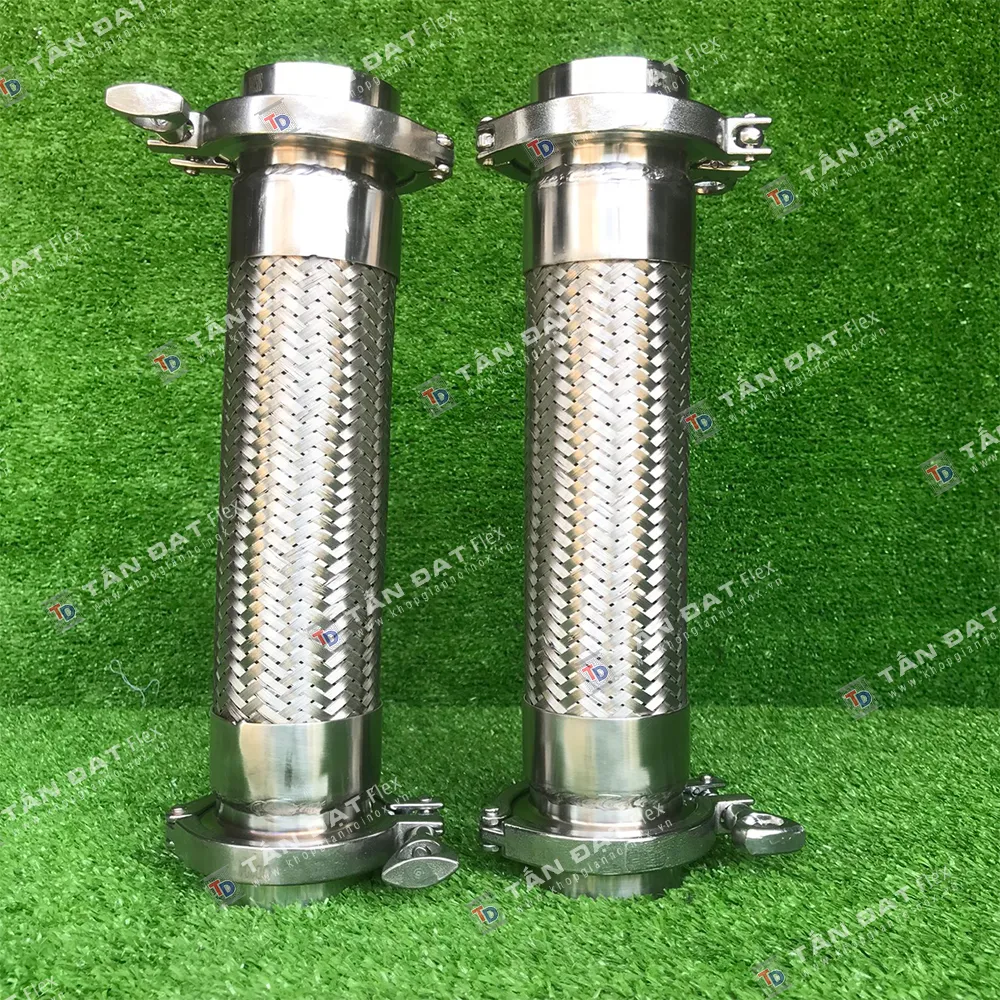

Sanitary flexible joint DN50 x 300 mm, tri-clamp ends
DN50 x 300mm stainless steel flexible joints with sanitary clamp connections manufactured by Tan Dat help compensate for misalignment and effectively reduce vibrations for food and chemical pipelines.
- Certified stainless steel of the correct grade
- 100% pressure tested before shipment
- Made to your size and connection type
- Factory prices – good discounts for dealers and contractors
Price: Contact us for the best price
- Fast quotation
- Direct manufacturer
- Project partnership
- Nationwide delivery
Specifications
| Product type | Khớp nối mềm clamp – vi sinh |
|---|---|
| Nominal size | DN50 |
| Length | 300 mm (custom lengths available) |
| Material | 304 stainless steel (316 on request) |
| End connection | Sanitary clamp |
| Origin | Made in Tan Dat workshop – Ho Chi Minh City, Vietnam |
| Inspection | Pressure and visual inspection before shipment |
| Custom manufacturing | Yes – size, end connection, material |
Description
Technical solutions for sanitary piping: DN50 stainless steel flexible joints with clamp connection
In technological systems requiring strict cleanliness, selecting connection accessories that ensure both a tight seal and vibration suppression is a critical challenge for design engineers. The DN50 stainless steel flexible joint product line with dual clamp ends and a design length of 300 mm, custom-fabricated directly at the Tan Dat mechanical workshop in Ho Chi Minh City, fully meets these practical operational requirements. The device acts as a flexible expansion joint, helping to absorb mechanical vibrations from pumps and minimizing pipe cracking caused by thermal stress.
Detailed technical specifications of the DN50 x 300mm clamp-end stainless steel flexible hose
To help engineers easily integrate the device into system drawings, below is the table of standard specifications and customization options available at the Tan Dat workshop:
| Technical characteristics | Standard specifications | Custom fabrication options |
|---|---|---|
| Product type | Stainless steel flexible joint with clamp ends | Various flange or thread types |
| Nominal diameter | DN50 (2 inch) | Other sizes per drawing |
| Overall length | 300 mm | Customized shorter or longer lengths |
| Material | Standard 304 stainless steel | Upgrade to 316 stainless steel for corrosion resistance |
| Connection type | Sanitary quick-clamp | Per specific system requirements |
| Testing procedure | 100% pressure testing and visual inspection |
Operating principle and advantages of applying clamp flexible joints

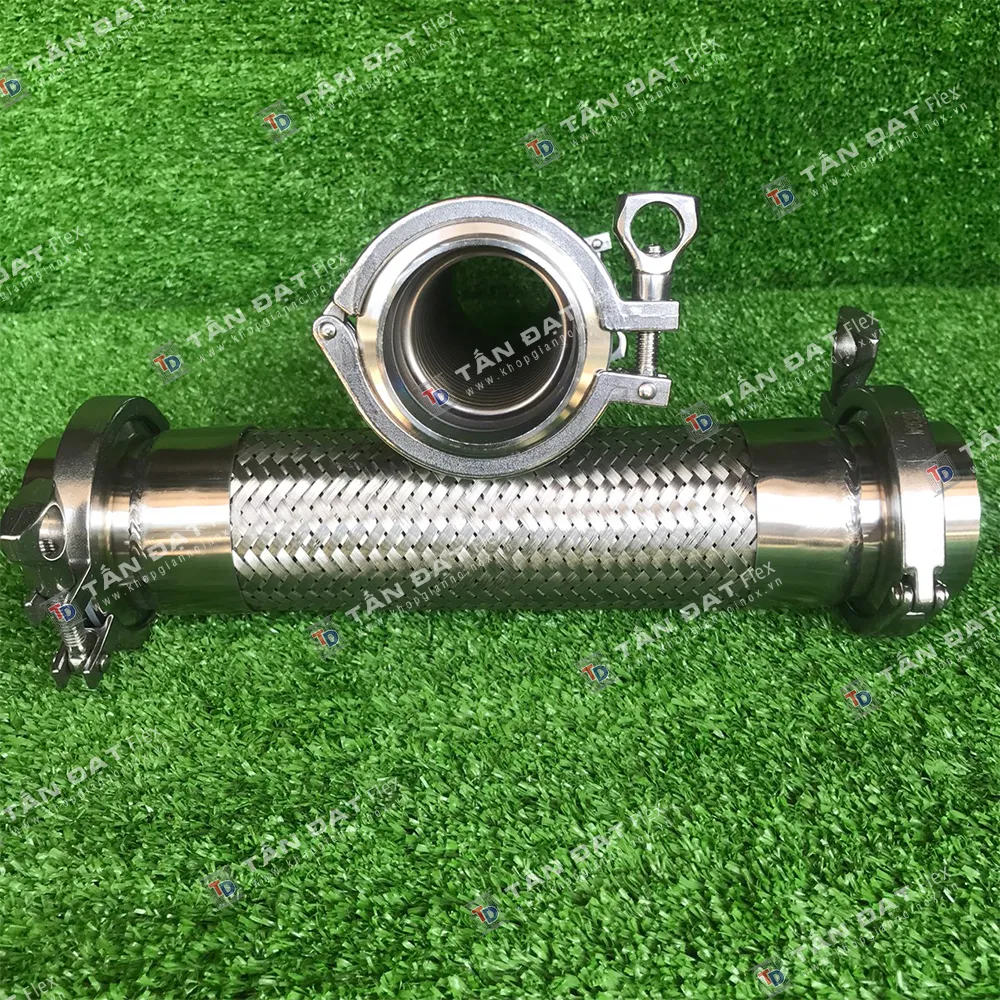

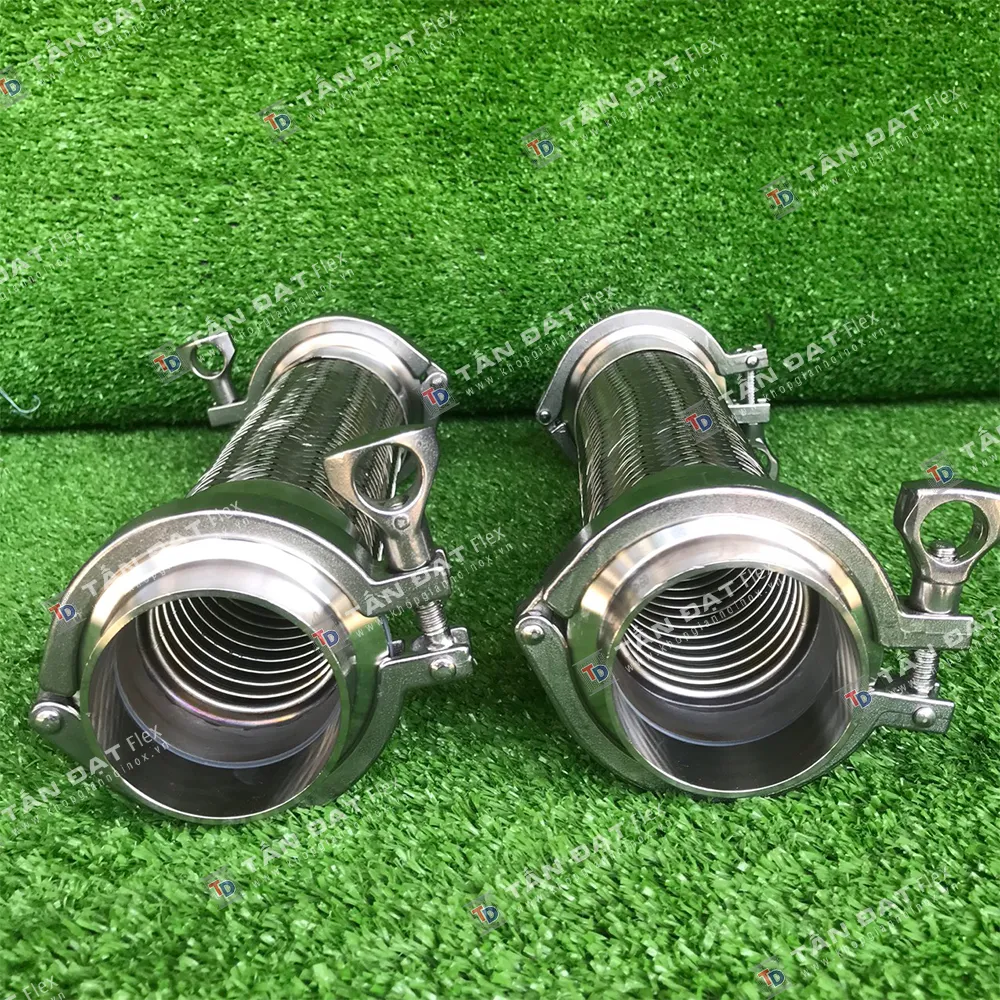

The device is constructed from a corrugated stainless steel hose with an external braided layer, combined with two specialized clamp ends for the sanitary industry. This installation method provides many practical values for operating technicians:
- Misalignment compensation: Effectively handles cases where the axes of the two pipe ends are non-coaxial or angularly misaligned during assembly.
- Vibration and noise suppression: Absorbs vibration energy generated by metering pumps or flow valves, protecting pipe welds.
- Quick assembly/disassembly: The clamp style allows engineers to easily remove the hose section for periodic cleaning without using complex tools.
- Optimal weight: Compact and lightweight structure, reducing the load on overhead pipe support systems.
Important notes during installation and maintenance
Proper technical installation directly determines the service life of the flexible joint. Engineers should follow these principles:
- Do not over-stretch or compress the 300 mm length of the joint while tightening the clamp to avoid deforming the internal corrugated hose.
- Use gaskets compatible with the medium and operating temperature to ensure a high-quality seal at the clamp neck.
- Secure the rigid pipe sections at both ends firmly so that the flexible joint focuses only on absorbing vibrations and does not bear the static load of the entire pipeline.
Practical applications in clean technology production lines
Thanks to their shiny surface, resistance to residue buildup, and ease of sterilization, these products are widely trusted in factories for:
- Piping systems for fresh milk, beverages, and liquid foods.
- Production lines for light chemicals, cosmetics, and pharmaceuticals requiring strict sanitary standards.
- Operating environments with moderate pressure where pipe connections need frequent changes for maintenance.
Contact for technical consultation and custom fabrication
The Tan Dat mechanical workshop accepts orders for DN50 x 300mm stainless steel flexible joints fabricated according to specific drawings or dimensions of the project. For detailed technical support and a quick quote, please contact:
CÔNG TY TNHH SX TM VÀ DỊCH VỤ CƠ KHÍ TẤN ĐẠT (Tan Dat Flex)
Workshop address: D20/26F2 Vo Van Van, Hamlet 4A, Tan Vinh Loc Commune, Ho Chi Minh City
Hotline / Zalo: 0906 304 114
Email: khopgiannoinox.vn@gmail.com
Frequently asked questions about sanitary clamp flexible joints
How much pressure can the stainless steel flexible joint withstand?
Standard single-braided stainless steel flexible joints operate at PN10 – PN16 (10 – 16 bar). For higher pressures, Tan Dat fabricates double-braided types or increases the corrugated hose thickness according to design specifications.
Should I choose 304 or 316 stainless steel flexible joints?
Stainless steel 304 is suitable for most water, steam, and gas systems. Stainless steel 316 contains molybdenum for better corrosion resistance, making it ideal for chemicals, seawater, wastewater, or coastal environments.
Does Tan Dat fabricate flexible joints with custom lengths and flange types?
Yes. As a direct manufacturer, we accept custom fabrication for any length, DN15 – DN300 (larger upon request), with JIS, BS, ANSI, DIN flanges, threaded ends, unions, and clamps. Call 0906 304 114 for a quote.
Projects using this product
Product reviews
Technical assessment
Tan Dat Flex engineering team
Sanitary flexible joint DN50 x 300 mm, tri-clamp ends belongs to our sanitary clamp flexible joints range. Material: 304 stainless steel (316 on request), end connection: Sanitary clamp, size DN50. Our engineers recommend it when you need this: sanitary clamp ends are quick to dismantle and easy to clean for food and pharma lines. For the longest service life, choose the right specification and follow the installation guide.
Strengths
- Sanitary clamp ends are quick to dismantle and easy to clean for food and pharma lines
- Isolates vibration from pumps, compressors and chillers, reducing weld cracks and pipe noise
- Durable stainless steel that withstands heat and rust in normal service
- Made to order in the size, end connection and material your project needs
Selection & installation notes
- Choose the clamp gasket material (EPDM, silicone, PTFE) for the temperature and cleaning chemicals
- Install as close as possible to the vibration source; do not use the joint to correct large misalignment
- For chloride, sea water or strong chemicals consider upgrading to SS316
- When ordering, share pressure, temperature, medium and installation size for an accurate quotation
