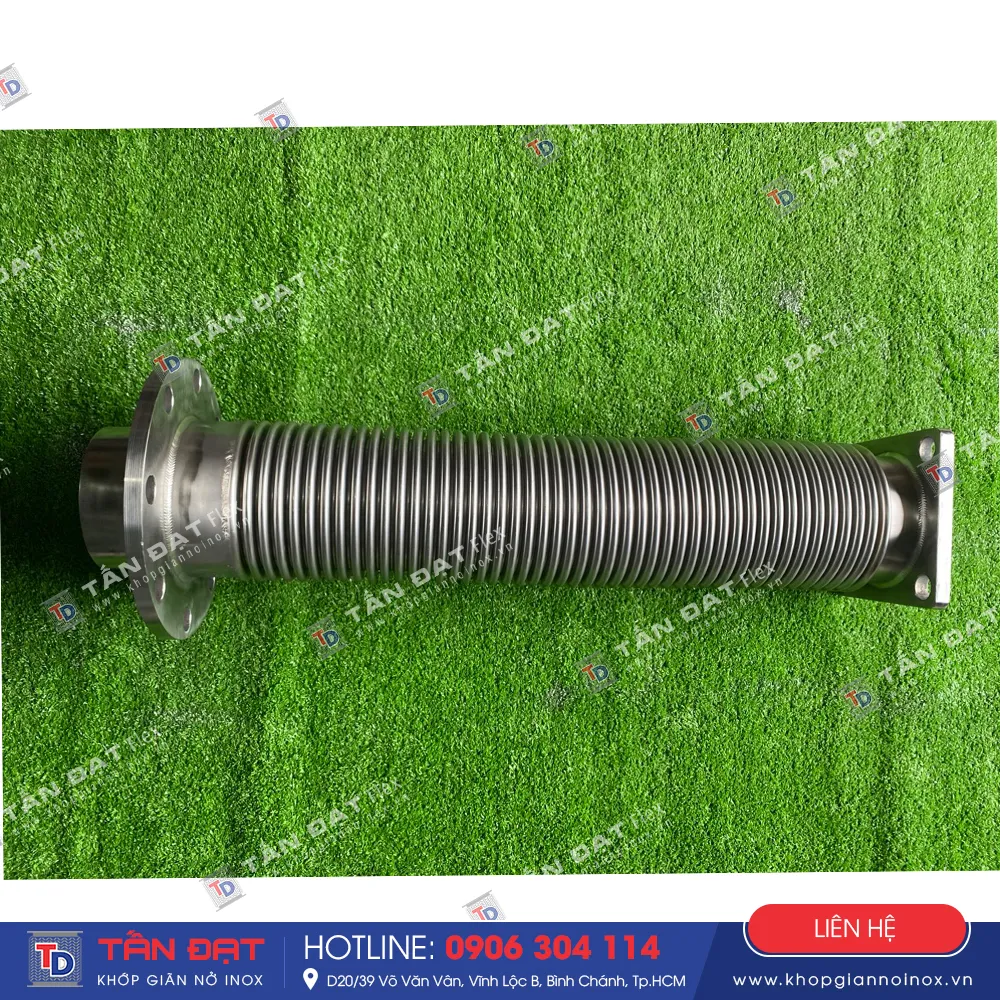

Custom unbraided flanged pipe

Custom unbraided flanged pipe

Code: TD-1002 Category: Welding to drawing

Custom fabrication service for unbraided flanged pipes upon request at Tan Dat Mechanical workshop. Products are made of Stainless Steel 304/316, steel, galvanized steel, ensuring full penetration welds and thorough pressure testing before delivery.

  • Certified stainless steel of the correct grade
  • 100% pressure tested before shipment
  • Made to your size and connection type
  • Factory prices – good discounts for dealers and contractors
Price: Contact us for the best price
Request a quote 0906 304 114 View catalogue (6) Zalo
  • Fast quotation
  • Direct manufacturer
  • Project partnership
  • Nationwide delivery

Specifications

Product typeGia công hàn theo bản vẽ
LengthOn request
Material304 stainless steel (316 on request)
End connectionFlanges (JIS/BS/ANSI)
OriginMade in Tan Dat workshop – Ho Chi Minh City, Vietnam
InspectionPressure and visual inspection before shipment
Custom manufacturingYes – size, end connection, material

Description

The custom non-braided pipe fabrication service with flanges at TAN DAT MECHANICAL TRADING SERVICE CO., LTD precisely meets the technical specifications for various industrial piping systems. Products are manufactured directly at our HCMC workshop with high durability, catering to diverse installation requirements for multiple project categories.

Technical specifications and manufacturing materials

Tan Dat's welding to drawing fabrication products are executed based on technical drawings or physical samples provided by customers. We use high-quality materials such as Stainless Steel 304, Stainless Steel 316 (upon request), steel, and galvanized steel to ensure structural rigidity and stable load-bearing capacity.

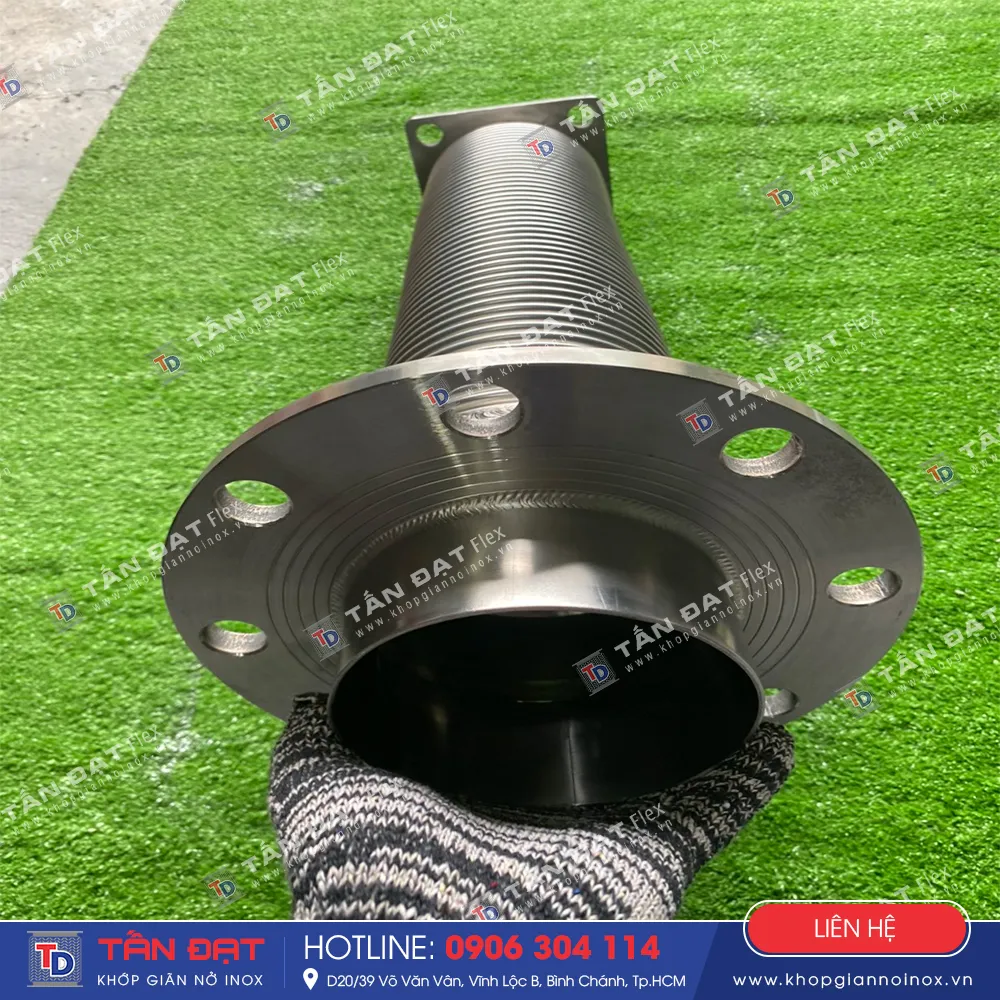

Custom non-braided pipe with flange fabrication - photo 1

Pipe lengths are flexibly cut and fabricated according to the actual requirements of the project. The flanged connection type complies with common standards such as JIS, BS, or ANSI, ensuring convenient and tight connections with valve and piping systems.

Fabrication process and quality control

At the Tan Dat manufacturing workshop, every non-braided flanged pipe product undergoes strict fabrication and quality control stages:

  • Welding fabrication: Ensures deep penetration and sturdy welds, with welding slag and surfaces cleaned after completion.
  • Visual inspection: Thoroughly checks the material surface, overall dimensions, and weld quality prior to delivery.
  • Pressure testing: Conducts pressure tests according to technical requirements to ensure tightness and operational safety.

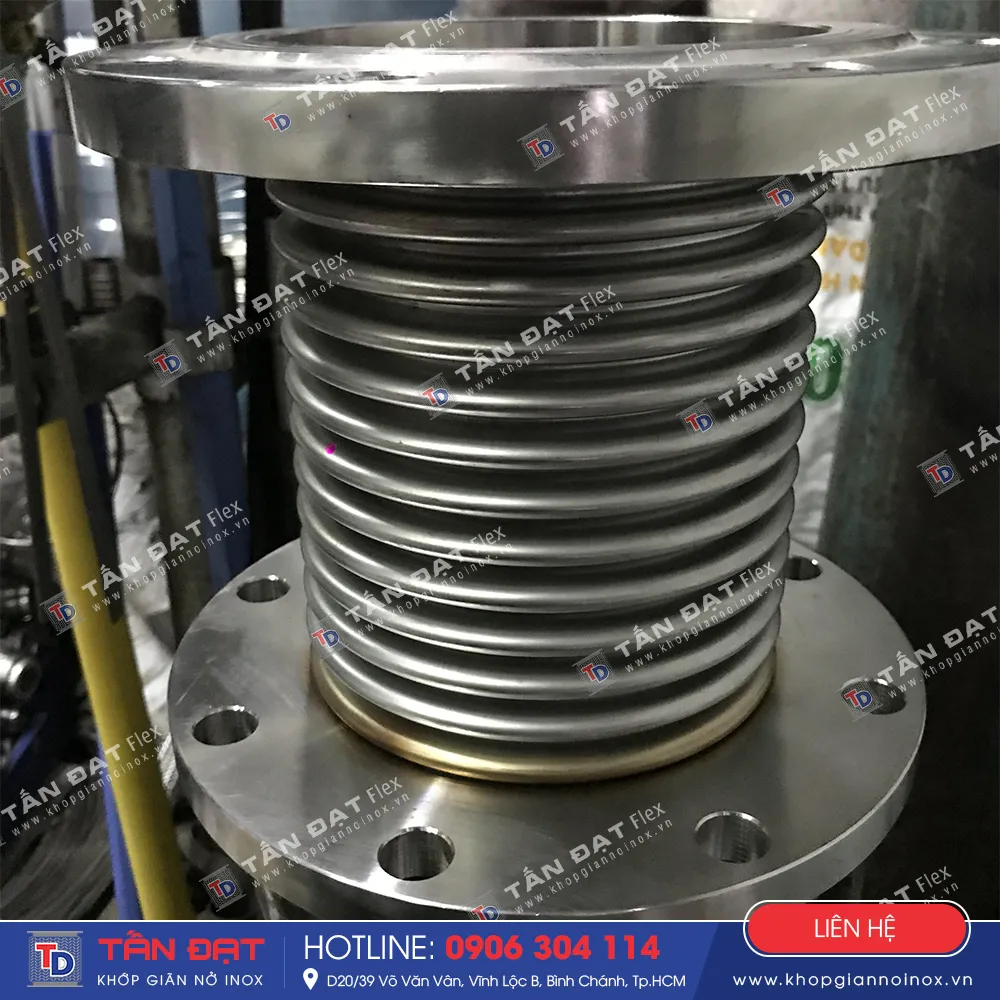

Custom non-braided pipe with flange fabrication - photo 2

Practical applications in industrial piping systems

Custom-fabricated non-braided pipes with flanges play an important role in conveying fluids and gases while withstanding pressure across various engineering fields. Typical applications include:

  • Civil and industrial construction projects
  • Water supply and drainage pump stations, wastewater treatment systems
  • Water storage tanks, fire protection systems
  • Manufacturing plants and general industrial piping systems

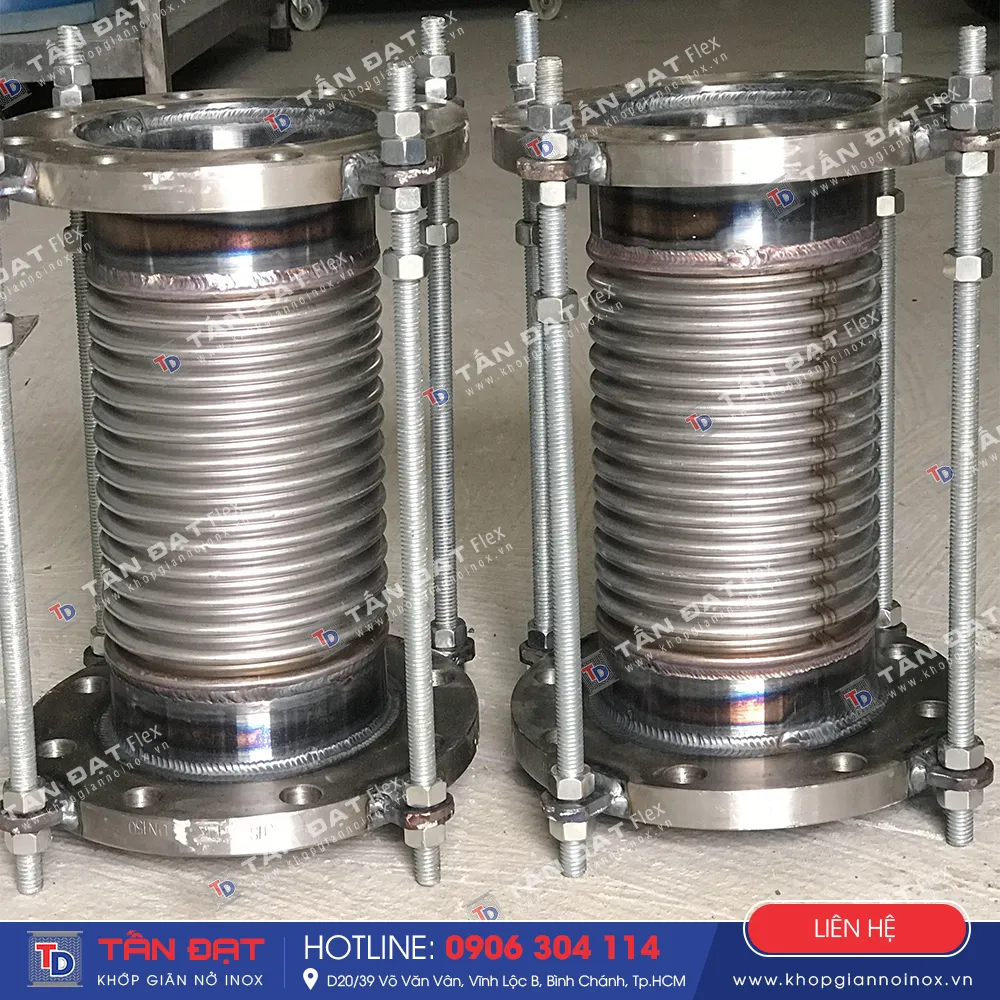

Custom non-braided pipe with flange fabrication - photo 3

Why choose the fabrication service at Tan Dat Flex?

TAN DAT MECHANICAL owns a direct manufacturing workshop in Vinh Loc, HCMC, bringing practical benefits to customers:

  • Direct workshop prices: Optimizes investment costs for both retail orders and large project quantities.
  • Quick quotation: Rapid response to requests and technical planning within a short timeframe.
  • Flexible to requirements: Accepts precise fabrication according to the specific dimensions, connection types, and material types of each project.
  • Quality commitment: Products are thoroughly inspected for appearance and pressure before leaving the factory.

Contact for custom non-braided flanged pipe fabrication orders

If you have a need for non-braided pipe fabrication or welding to drawing fabrication products, please contact us directly for consultation and a detailed quotation:

TAN DAT MECHANICAL TRADING SERVICE CO., LTD

  • Brand: Tan Dat Flex
  • Hotline: 0906 304 114
  • Zalo: 0906304114
  • Email: khopgiannoinox.vn@gmail.com

Frequently asked questions about welding to drawing

Does the workshop accept custom fabrication according to drawings for small quantities?
Yes, Tan Dat accepts both single orders and large quantities, according to drawings or actual samples.
What is the water stop collar on the pipe spool & wall sleeve used for?
The collar welded around the pipe helps block water seepage along the pipe body when the pipe passes through tank walls or basement walls.
Does Tan Dat accept unbraided pipe fabrication according to custom drawings?
Yes, we accept fabrication of sizes, lengths, connection types, and materials according to the exact drawings or actual samples of customers.
What materials are used for unbraided flanged pipe products?
The products are made of Stainless Steel 304, Stainless Steel 316 (upon request), steel, or galvanized steel.
What standards do the flanged connection types of the pipe follow?
The flanged connection types comply with common standards such as JIS, BS, and ANSI.

Product reviews

Technical assessment Tan Dat Flex engineering team

Custom unbraided flanged pipe belongs to our welding to drawing range. Material: 304 stainless steel (316 on request), end connection: Flanges (JIS/BS/ANSI). Our engineers recommend it when you need this: flanged ends are quick to install and remove for maintenance. For the longest service life, choose the right specification and follow the installation guide.

Strengths
  • Flanged ends are quick to install and remove for maintenance
  • Durable stainless steel that withstands heat and rust in normal service
  • Made to order in the size, end connection and material your project needs
Selection & installation notes
  • Confirm the flange standard (JIS, BS, ANSI, DIN) and bolt pattern to match the existing pipeline
  • For chloride, sea water or strong chemicals consider upgrading to SS316
  • When ordering, share pressure, temperature, medium and installation size for an accurate quotation

No customer reviews for this product yet. Have you used it? Share your experience.
