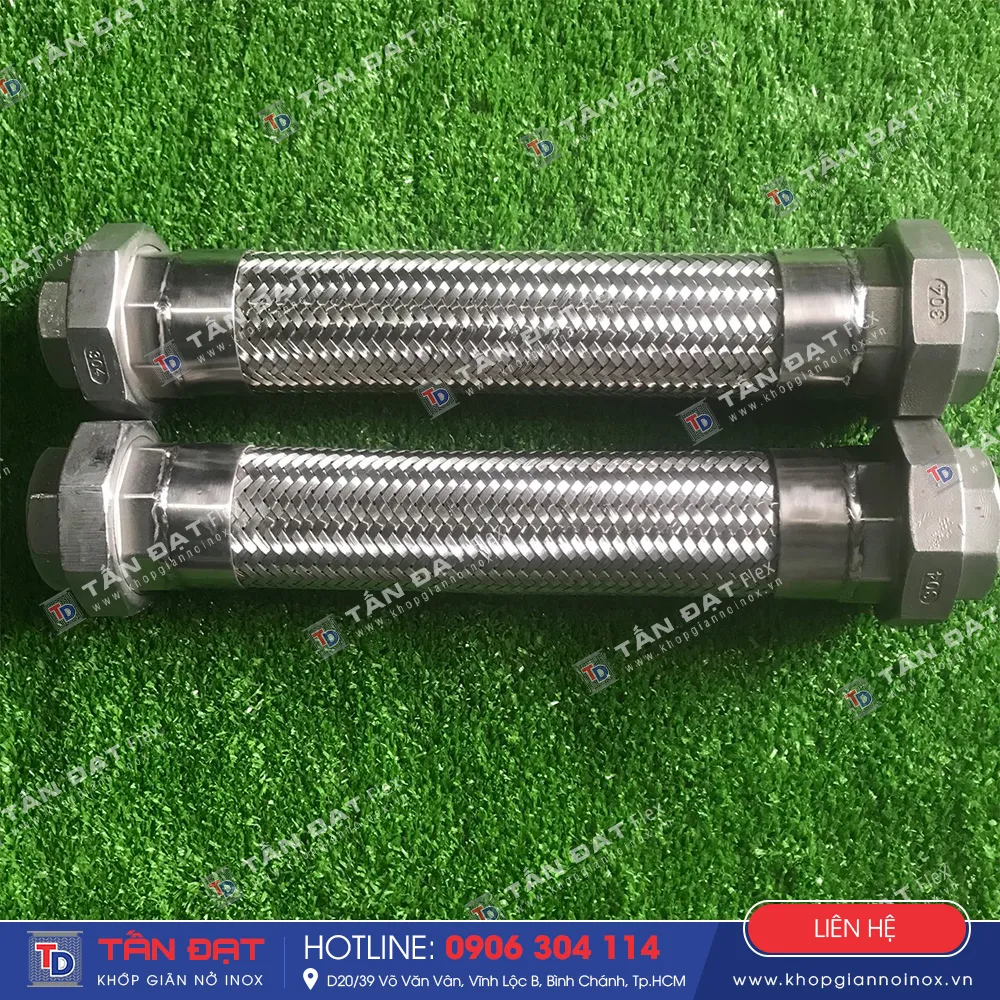

304 stainless braided corrugated hose

Technical specifications and construction of 304 stainless steel braided corrugated hoses

In industrial piping systems, conveying fluids under high pressure and temperature requires connection equipment that meets stringent technical standards. 304 stainless steel braided corrugated hoses are the ideal solution for these requirements, thanks to the combination of an inner corrugated hose and an outer protective braided layer.

The standard manufacturing material is 304-grade stainless steel, providing effective corrosion resistance in humid environments or when exposed to basic chemicals. Additionally, the Tan Dat mechanical workshop offers 316 stainless steel as an option for environments with more severe corrosive conditions, tailored to specific project requirements.

Selection guide and practical applications in systems

This equipment is specifically designed to connect pipelines for compressed air, steam, water, or oil. Thanks to its corrugated structure, the hose is highly flexible, allowing engineers to easily install it in tight spaces, blind corners, or positions requiring periodic movement without worrying about structural deformation.

Some technical scenarios that prioritize the use of this product line include:

• Machinery locations with high vibration during operation, requiring equipment to dampen shocks and protect rigid piping.
• Areas needing to absorb displacement amplitudes caused by the thermal expansion of the fluid.
• Connection points requiring high flexibility and ease of alignment during installation.

To optimize performance, engineers should precisely determine parameters such as working pressure, ambient temperature, and fluid properties before placing an order.

Custom fabrication according to technical requirements at the Tan Dat workshop

Every industrial system often has specific drawings and connection parameters. Understanding this, the Tan Dat production workshop accepts custom fabrication of braided corrugated hoses in non-standard sizes based on the actual requirements of our customers.

Common fabrication options

• Hose length: Cut and finished to the exact design dimensions of the project.

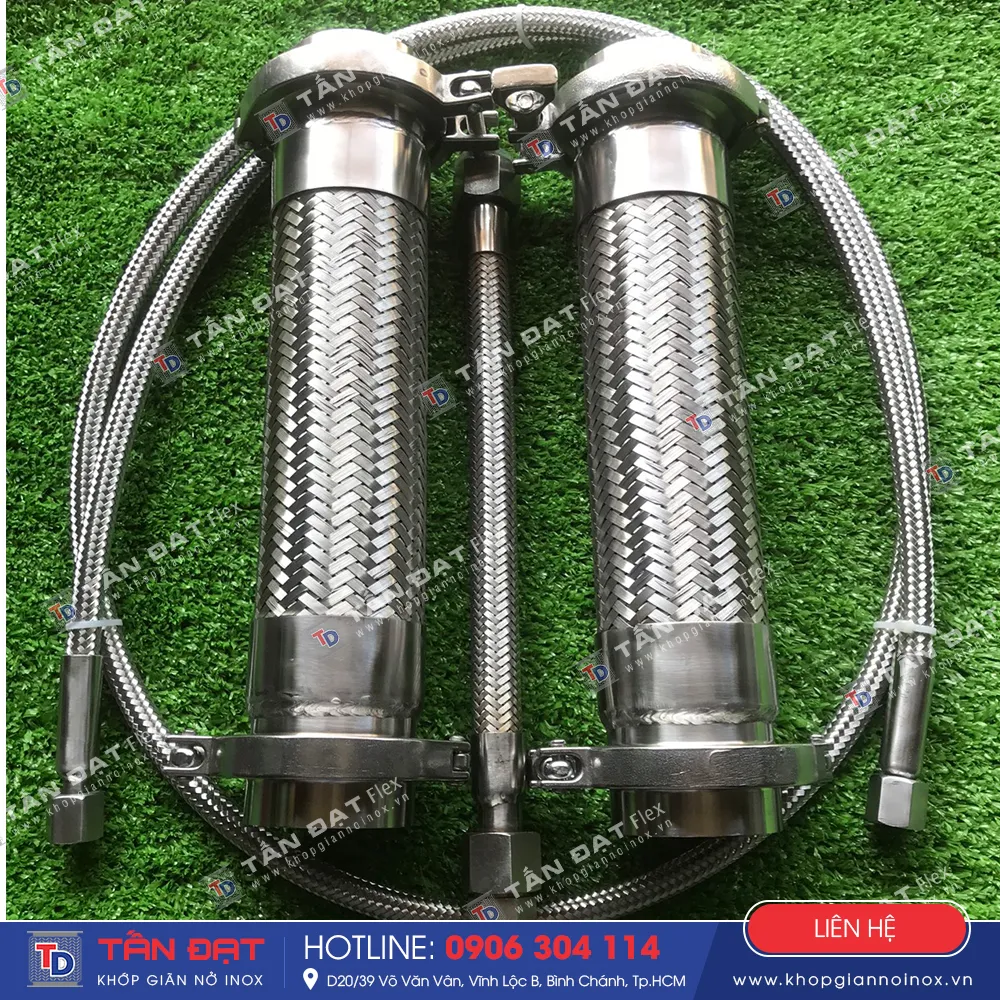

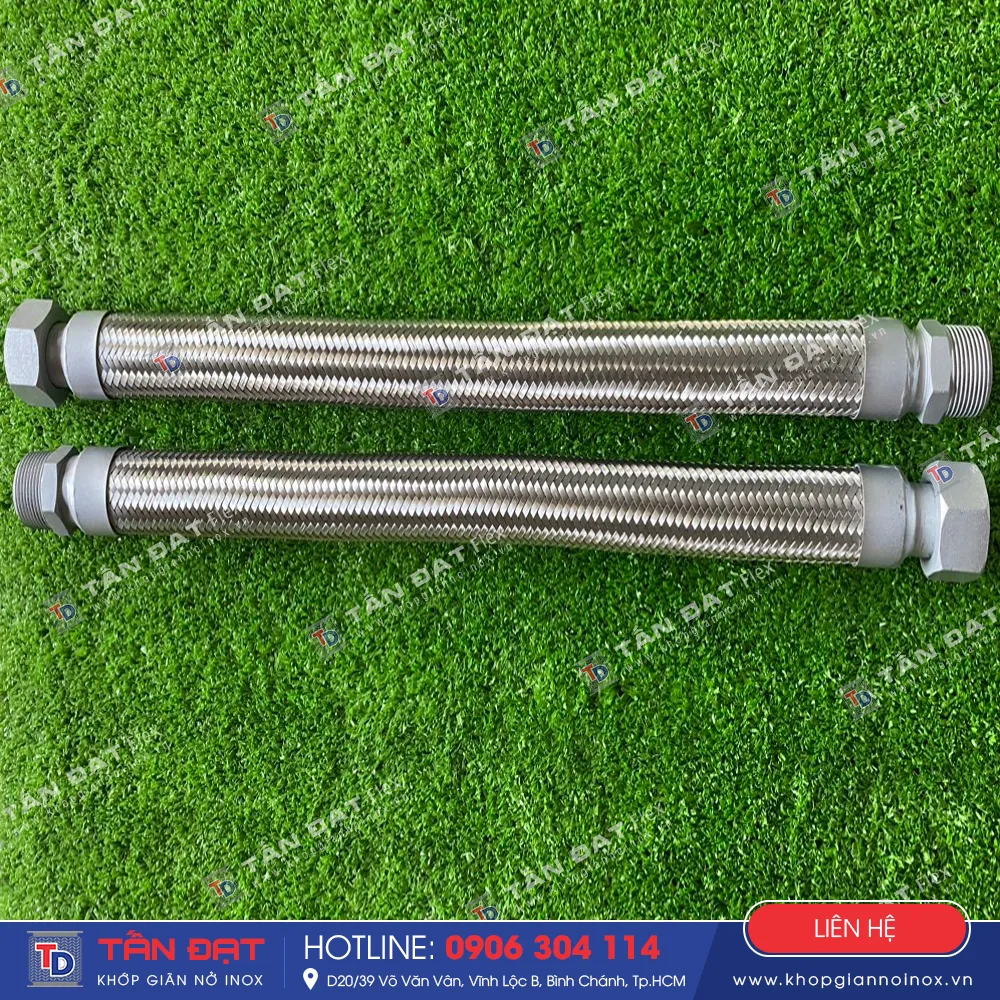

• Connection types: A variety of forms such as flanges, internal threads, external threads, female cone seat threads, unions, bent ends, or straight ends, depending on the system structure.
• Material: Standard 304 stainless steel or 316 stainless steel according to the specific working environment.

Being proactive in the production stage allows us to quickly fulfill specialized orders with high technical precision.

Quality control process before dispatch

To minimize the risk of fluid leakage during actual operation, every stainless steel braided corrugated hose must undergo rigorous testing before leaving the Tan Dat workshop. Our technical team performs pressure tests to ensure the load-bearing capacity of the welds and the hose, while also conducting visual inspections to discard any non-standard products.

The 100% pressure testing process for all products is our commitment to safety and reliability when putting equipment into operation in factories.

Contact for consultation and ordering

For detailed advice on technical specifications, selection of connection types, or to order custom 304 stainless steel braided corrugated hoses, please contact CÔNG TY TNHH SX TM VÀ DỊCH VỤ CƠ KHÍ TẤN ĐẠT (Tan Dat Flex) directly via:

• Workshop address: D20/26F2 Vo Van Van, Hamlet 4A, Tan Vinh Loc Commune, Ho Chi Minh City
• Hotline / Zalo: 0906 304 114
• Email: khopgiannoinox.vn@gmail.com
